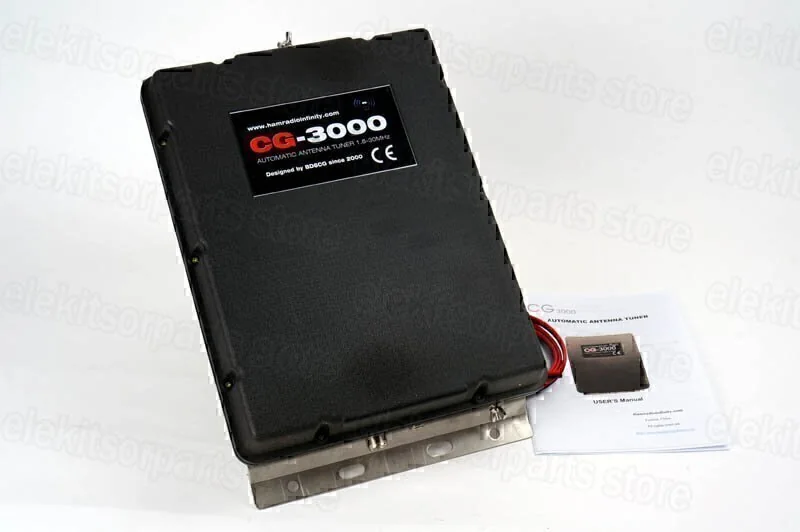

cg-3000 main photo

$ 249.99

  • cg-3000 main photo

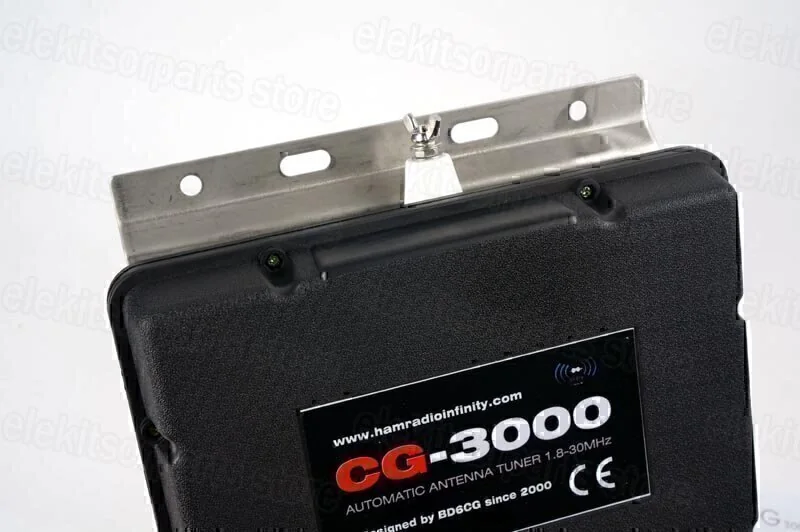

  • DSC02358

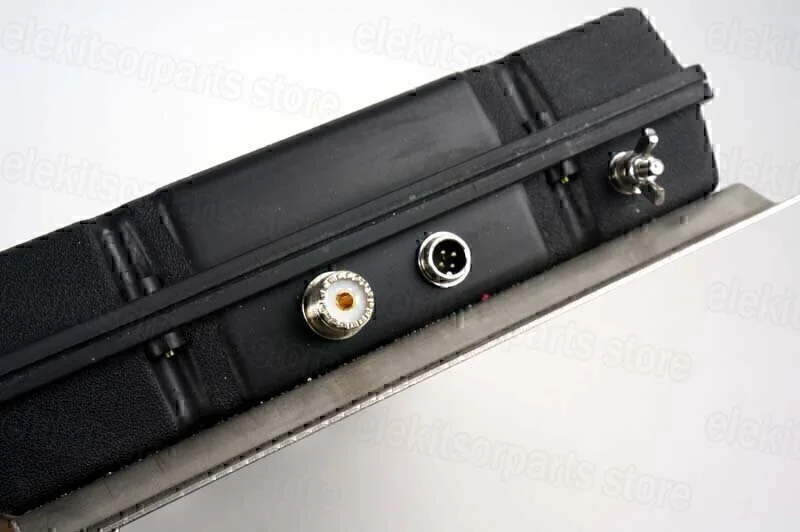

  • DSC02359

CG-3000 Outdoor Antenna Tuner

Antenna Tuner of High Efficiency for Long Wire Antennas

  • Description
  • Additional Information

Product Description

CG-3000 automatic antenna tuner (ATU) can cover whole HF amateur bands. It uses multi-signal processing circuit to switch L/C to make perfect matching between your radio and antenna system. Fast tuning, less than 2 seconds for first initialize matching. 200 memory channels store the minimum SWR value to make further tuning.

SPECIFICATION:

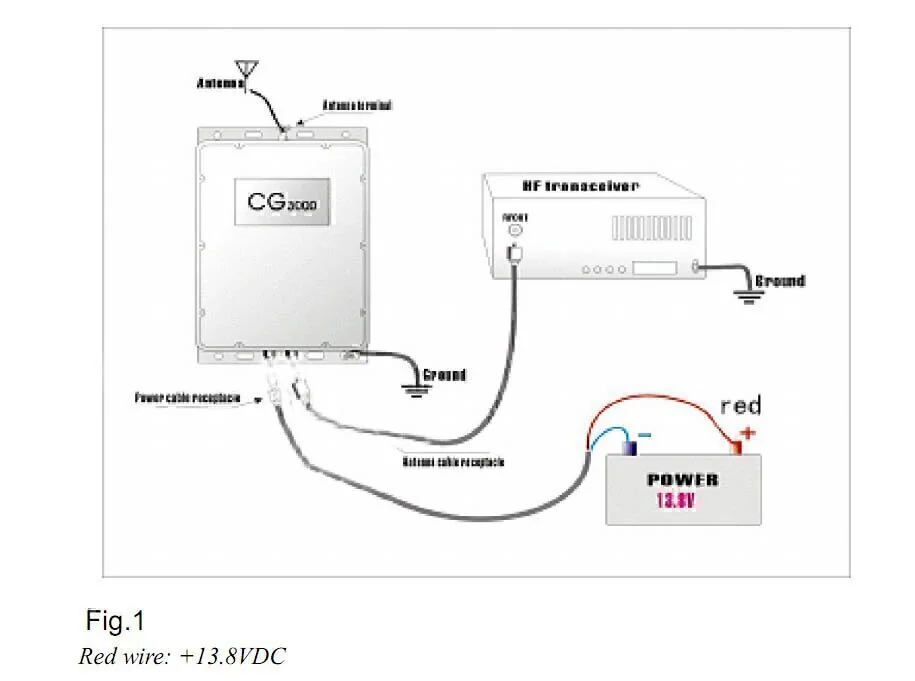

  • Working Frequency: 1.8 – 30MHz                    connection diagram
  • Input Impendence: 50 ohm
  • Max. Input Power: 200W PEP
  • Min. Input Power: 10W
  • Power Supply: 13.8V ±10%
  • Current Drain: lower than 0.8 Amps
  • Auto Tuning Time: Approx. 2 sec. (first time tuning) , 0.2 SEC Normally
  • Memory Channels: 200
  • Usable Wire Length: 6-30MHz < 2.4meters
  • 1.8-30MHz > 8.0meters

 Note: All specifications are subject to change without notice or obligation

WARRANTY:
We warrant all products against defects in material for a period of 1 year unless otherwise indicated.The warranty does not cover damage, improper use, abuse, or conditions beyond our control (i.e. lightning).

REPAIRS:
If you have any problem of your tuner, please contact your local sales directly. Then we can arrange the repair service.If return for repair is needed, please wrap and pack your unit well to protect damage during transportation or handling. Include a note with your name, address, phone number, email and brief description of the problem.



Additional Information

Weight 2.48 kg
Dimensions 420 x 320 x 140 mm
